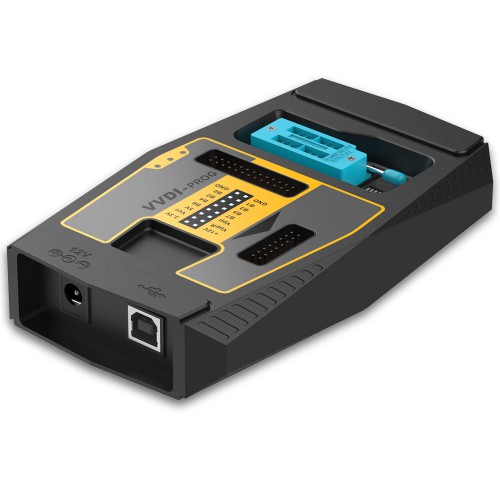

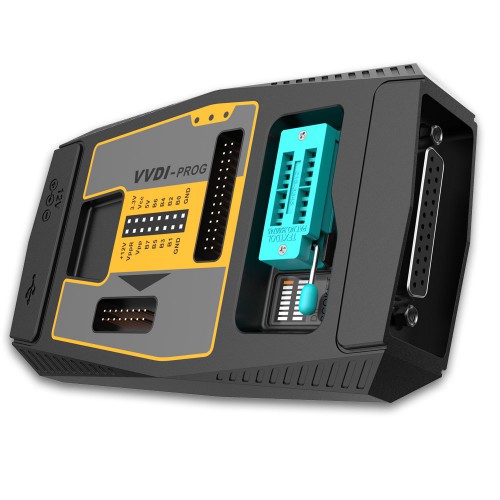

Xhorse VVDI-Prog VVDI Prog V4.9.4 Programmer

Xhorse VVDI-Prog VVDI Prog V4.9.4 Programmer

1. Built-in update software ( V4.9.4) Firmware (V2.1.0) update timely.
2. High-speed USB communication interface: Makes software automatically connect.
3. Smart operation mode: possible causes of error will be listed
4. Reserve ports: For future update.
5. Self-test function: Check if the machine works well or not.
6. Power supply: Through USB cable, software will automatically prompt if the external USB power supply is needed.

VVDI PROG Language: English, French, Italian, Spanish, Arabic, Cezch, Polish, Portuguese, Russian, Turkish, Chinese

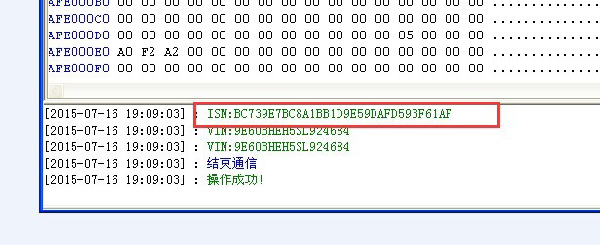

VVDI-PROG Programmer reading ISN:

VVDI PROG Programmer Firmware Version

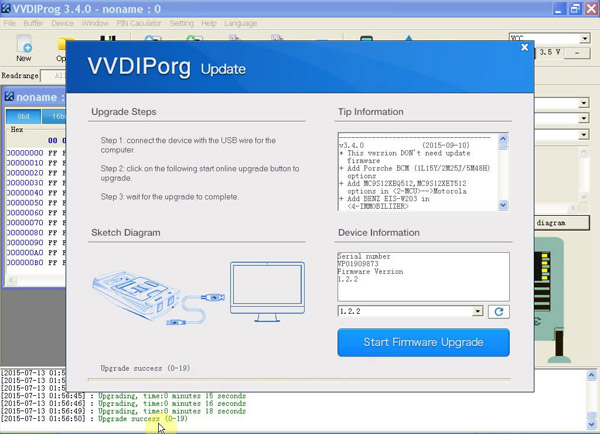

VVDI PROG latest software version V4.9.4 update

* This version DON’t need update firmware
+ Add VVDI PROG USER MUNUAL 4.9.4 version in Doc folder
+ Add R7F701330 option in <2-MCU->
+ Add FENGJUN-7 option in <5-DASHBOARD->
+ Add TOYOTA-RAV4 option in <5-DASHBOARD->
+ Add BAOJUN-310/560 AIRBAG option in <7-AIRBAG->
+ Add T300 AIRBAG option in <7-AIRBAG->
+ Add NEW VISION AIRBAG option in <7-AIRBAG->
+ Add BAODIAN AIRBAG option in <7-AIRBAG->
+ Add LYNKCO-AIRBAG option in <7-AIRBAG->
+ Add SRS-VW62 option in <7-AIRBAG->
+ Add AUDI-AC-CONTROLLER(R7F701548) option in <8-OTHERS->
+ Add FRM-E-SERIES-XDT256 option in <8-OTHERS->
+ Add ESCORT-BCM option in <8-OTHERS->
+ Add 8th-SONATA-AC-CONTROLLER option in <8-OTHERS->
+ Add SKODA-RADIO-STREAM option in <8-OTHERS->

VVDI PROG software V4.9.2 update

v4.9.3 (2020-04-29)
* This version DON’t need update
firmware
* Fix 93Cxx ERASE BUGs
+ Add VVDI PROG USER MUNUAL 4.9.3
version in Doc folder
+ Add S2943 option
in<1-EEPROM&FLASH->
+ Add S2943(CLIP) option
in<1-EEPROM&FLASH->
+ Add EIZ-W906-9S12XDT384,
EIZ-W906-9S12XDP384(ADAPTER),
EIZ-W906-9S12XDP512,
EIZ-W906-9S12XDP512(ADAPTER)
option in <4-IMMOBILIZER->
+ Add CRAFTER-EZS-9S12XDT384,
CRAFTER-EZS-9S12XDT384(ADAPTER),
CRAFTER-EZS-9S12XDP512,
CRAFTER-EZS-9S12XDP512(ADAPTER)
option in <4-IMMOBILIZER->
+ Add ARRIZO3 option in
<5-DASHBOARD->
+ Add FIAT500 option in
<7-AIRBAG->
+ Add GLC260-ELECTRONIC-TAILGATE-UINT(2016),
V260-STEERING-COLUMN(2016) options in
<8-OTHERS->
+ Add BESTURN B90 CONTROL UNIT-PKE(2015)
option in <8-OTHERS->
+ Add CLIO-HFM-MODULE option in
<8-OTHERS->
+ Add PHAETON-REVERSE-RADAR-UINT(2012)
option in <8-OTHERS->

Adapters Detailed Description:

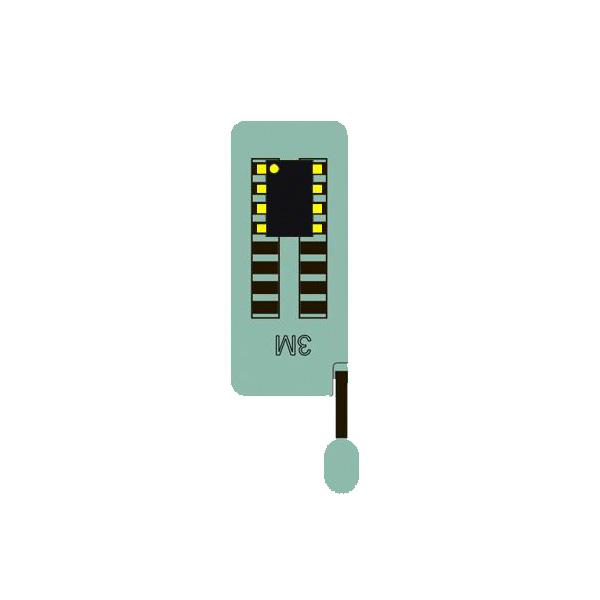

16Pin Locking Socket
Read the common EEPROOM, note: please insert the chip accoring to following pictures.

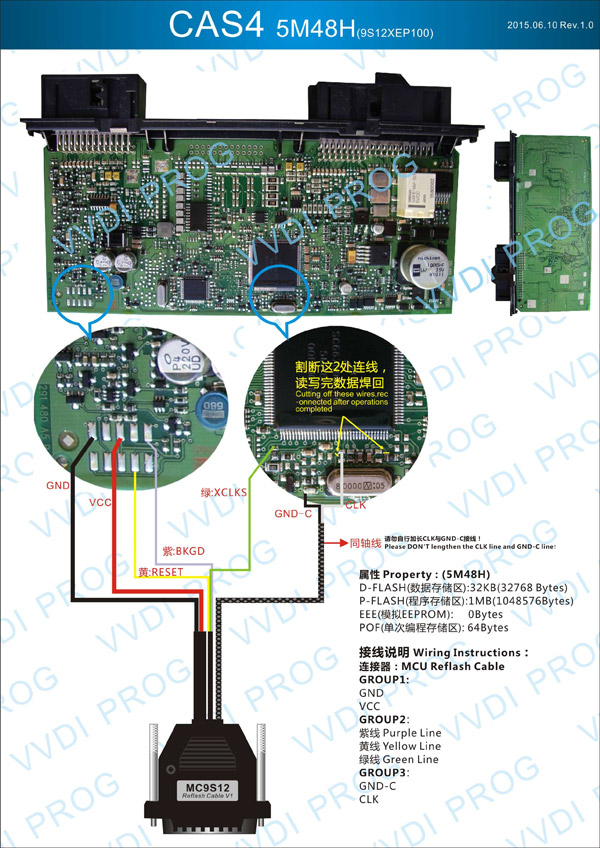

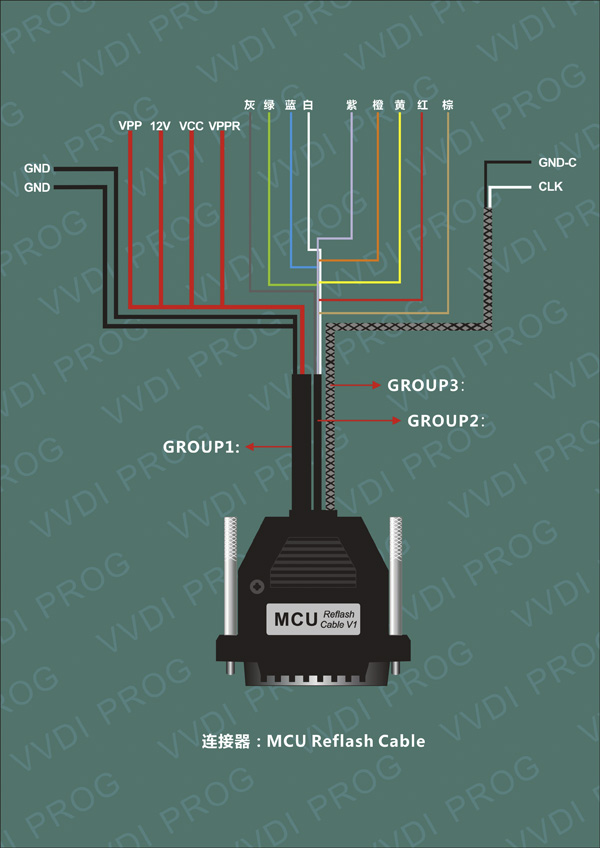

1.3.2 MCU Reflash Cable
Used to program MCU on board

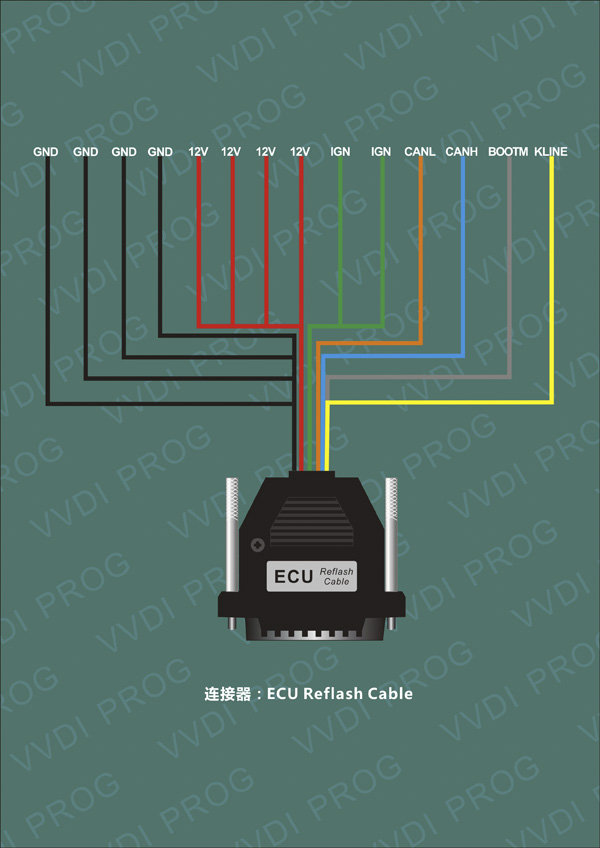

1.3.3 ECU Reflash Cable
Used to program ECU

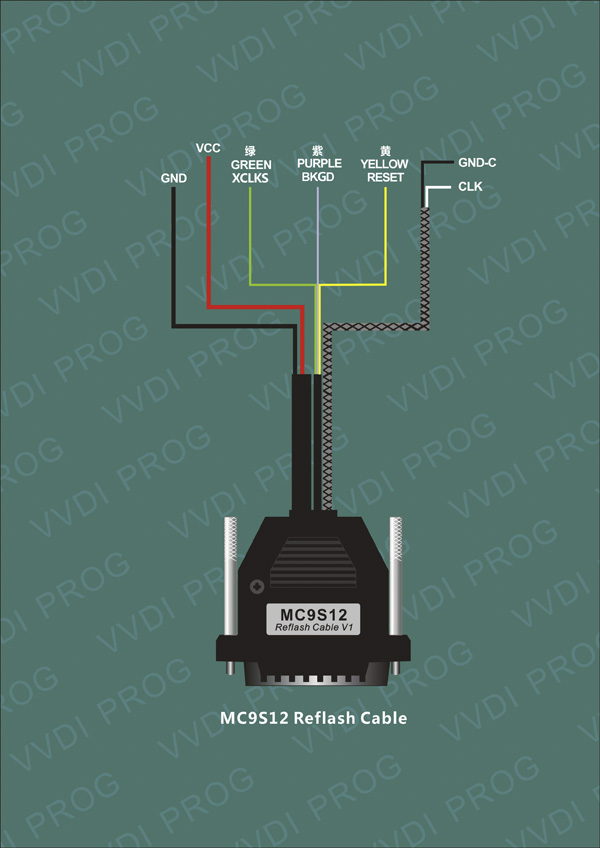

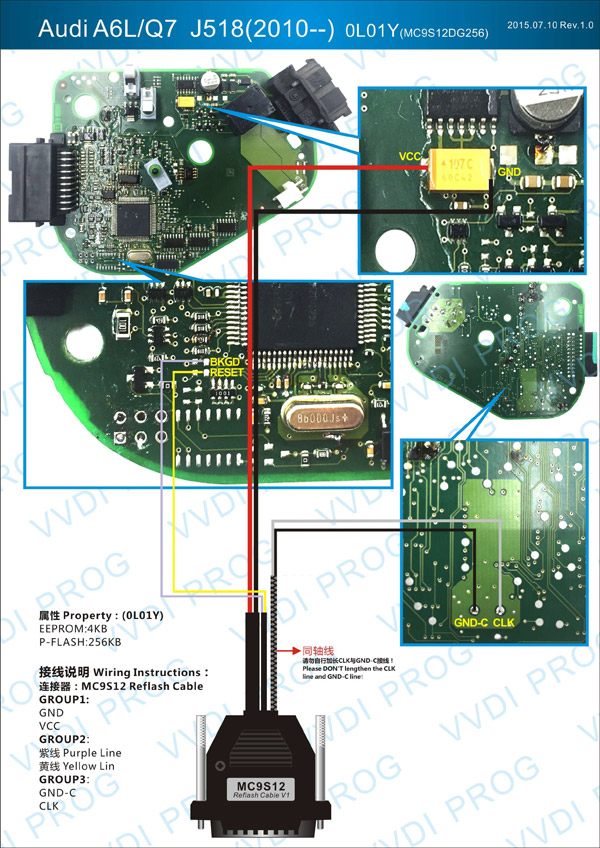

1.3.4 MC9S12 Reflash Cable
Used to program MC9S12 series chip

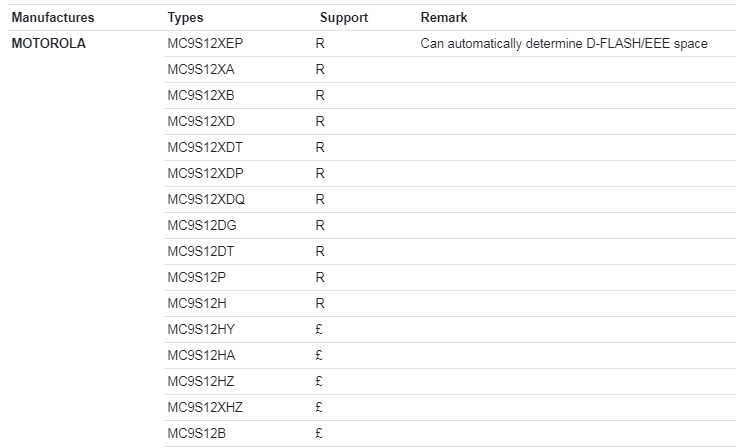

Supported chip list

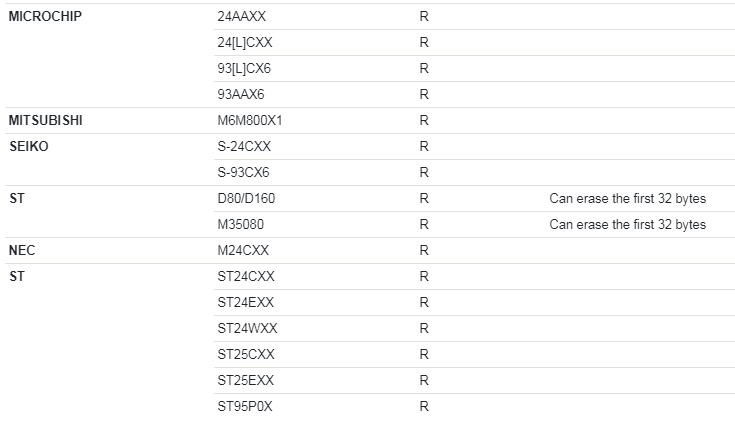

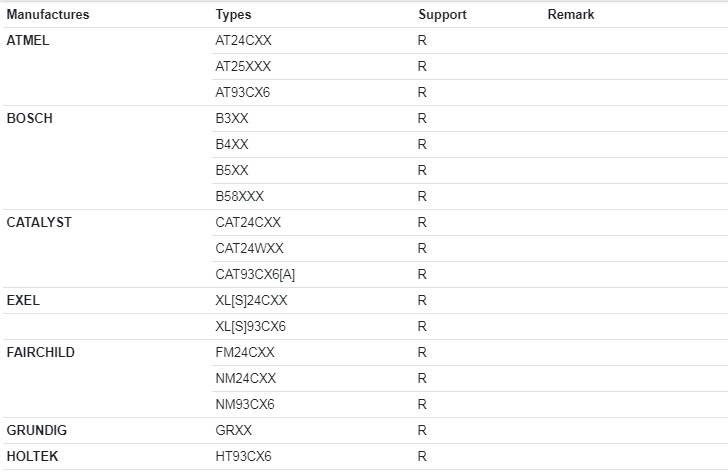

EEPROM

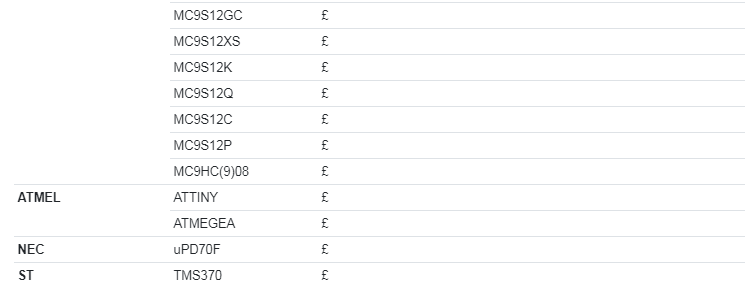

MCU

Note: R means the type is supported £ means the type will be supported in the future.

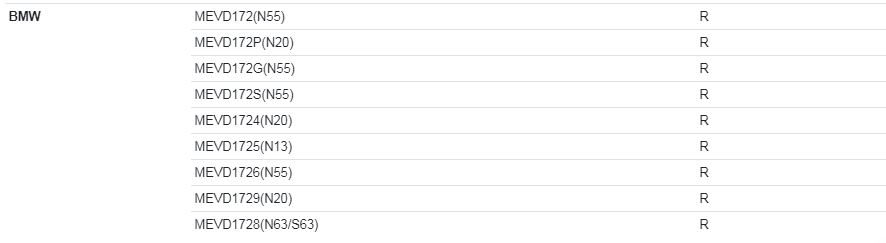

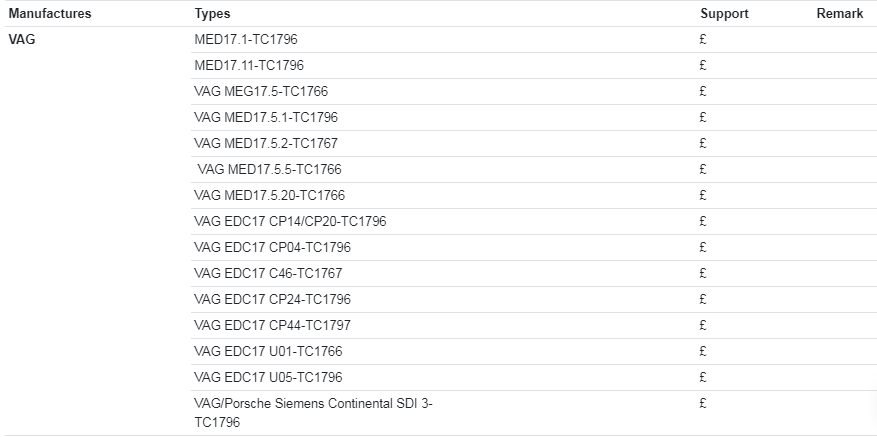

ECU

Package List:

1pc x Programmer multiplexer
1pc x Square USB cable
1pc x SOP16 test socket
1pc x 16pin converter (Support SOP/SOT/SSOP)
1pc x MCU reflash cable
1pc x ECU reflash cable
1pc x MC9S12 reflash cable (Used to program MC9S12 series chip)
1pc x 12V3A power adapter ( High quality power supply)

Two adapters: one for versions 28, 35, 40, 51, 57, another one for version 59. This two adapters are not in the parcel. If you need them, you need buy along.
