New Launch X431 HD3 HD III Ultimate Heavy Duty Truck Diagnostic Adapter for X431 V+, X431 PAD3, X431 Pro3

New Launch X431 HD3 HD III Ultimate Heavy Duty Truck Diagnostic Adapter for X431 V+, X431 PAD3, X431 Pro3

With this device you test heavy equipment at 12 / 24V. Connections via USB and Bluetooth. The package also includes the necessary additional adapters.
The new LAUNCH heavy duty module is perfect for a shop that works on heavy duty (Class 4 through 8) and medium trucks.
More over this module can work with the X431 V+, X431 PAD3, X431 Pro3, to expand the diagnosis of the HD vehicle and can diagnose both 12V & 24V vehicles.

Launch X431 HD3 Functions

Identification of control units
Adaptation of control units
Reset service intervals
Reading vehicle data streams
Display of current system parameters
Check actuators
Reading and erasing vehicle fault codes

Benefits

36 brands of foreign trucks with the possibility of expanding the supported brands
indicators showing the status of the connection in real time
IP65 protection
shockproof case.

Powerful special functions:
Component Replacement, Cylinder Compression Test, Injector Cut Out Test, DPF Regeneration
Communicates with ABS & Transmissions from Bendix, Wabco and Allison
Tech to Tech remote communication function

Supported heavy duty vehicle list:

Europe:
MERCEDES BENZ
MAN
VOLVO
SCANIA
IVECO
DAF
RENAULT
U.S:
Freightliner
INTERNATIONAL
Kenworth
PETERBILT
STERLING
WESTERN STAR
MACK
DETROIT
CUMMINS
Asia:
HINO
FUSO
ISUZU
UD
HYUNDAI

HDIII Specifications:

Input voltage: 9-36V
Power: ≤3.0W
Working temperature: -10℃~55℃
Communication: USB/Bluetooth/Wi-Fi
CPU: 120MHz

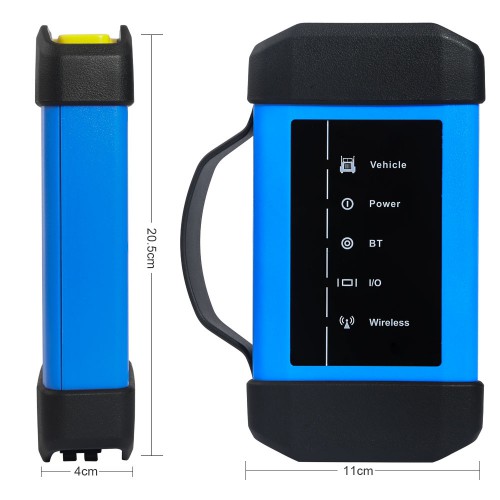

Size: 204X110X45 mm

Activate HD III & Download Software
If you had a diagnostic tool of 12V passenger car configuration and intend to extend the diagnostics of commercial vehicles, follow the steps described below to activate the HD III:

Note: Please make sure that the diagnostic tool is properly connected to the Internet before proceeding this step.

1. Launch the application, and log in the system using the existing user account of Passenger Vehicle Configuration, and then tap “Personal Center (or )” setting icon-Profile> “Activate VCI (or “Activate Connector )”.

2. Input the Product S/N and Activation Code, which can be found in the supplied Password Envelope, then tap “Activate” to activate the HD III.

3. Tap “Update” to enter update center, tap “Update” to download and install the diagnostic software of Commercial vehicles.

4. After the software download is complete, a new “Heavy-duty” tab will appear on the Diagnostic main menu screen.

Toggle Between Passenger and Commercial Vehicles

If several VCI connectors and HD III devices are activated on the diagnostic tool, a list of connectors will be displayed in the “VCI (or “My Connector”), which can be accessed by tapping “Personal Center (or ) Profile”.

Switch from a passenger car to a commercial vehicle

If you want to switch from a passenger car to a commercial vehicle, enter “VCI (or “My Connector”) -> select the HD III S/N (starting with 98649) -> Return to the diagnostic main menu -> connect the HD III, diagnostic tool and vehicle -> tap “Heavy-duty” tab to select the corresponding vehicle model -> follow the on-screen prompts to start a diagnostic session

Switch from a commercial vehicle to a passenger car

To switch from a commercial vehicle to a passenger car, enter “VCI (or “My Connector”) -> select the VCI connector S/N -> Return to the diagnostic main menu ->connect the VCI connector, scan tool and vehicle -> Use VINScan (or manual diagnosis) to start diagnosis.

Packing List:

1set X Launch X431 HD3
