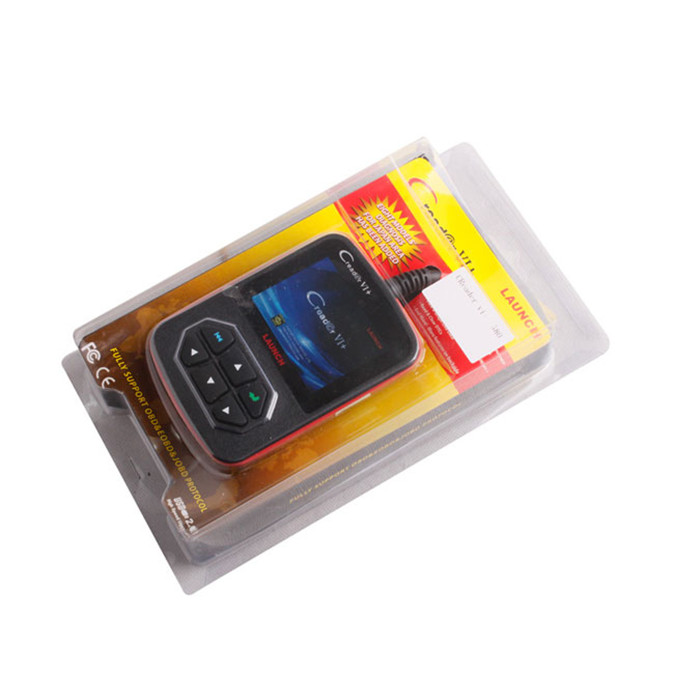

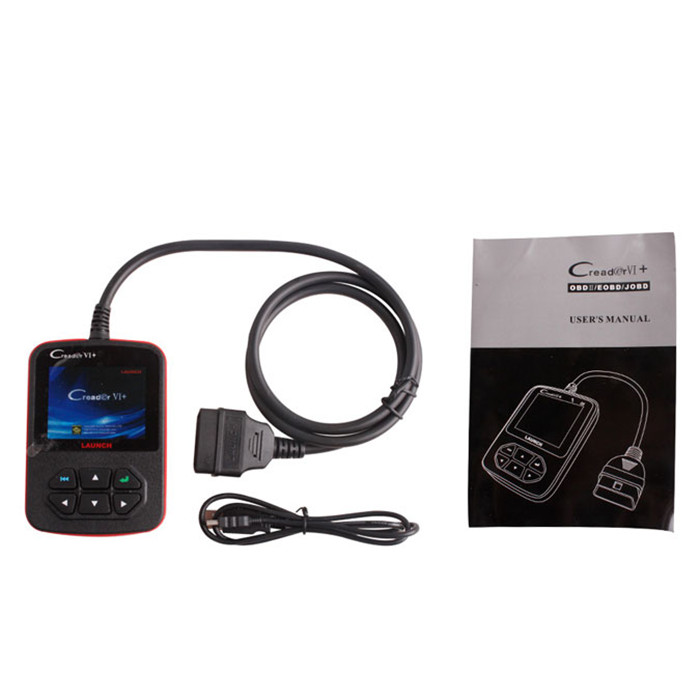

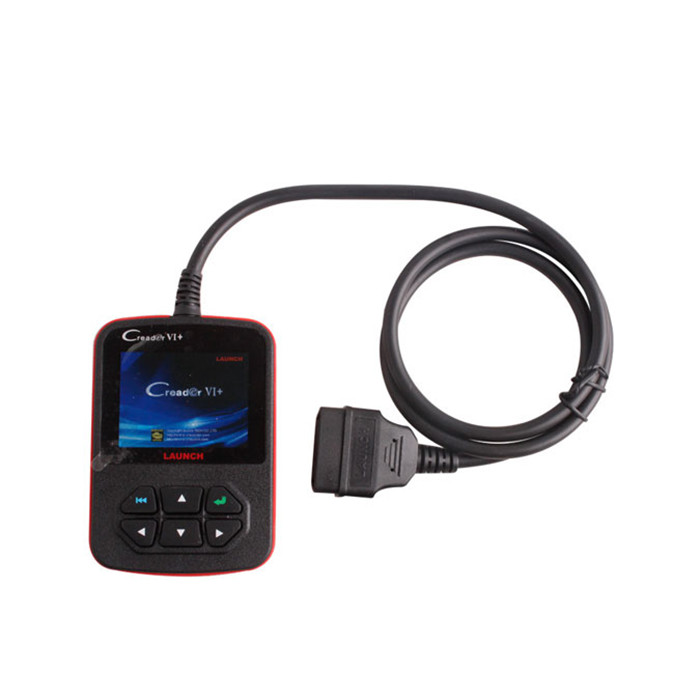

Launch Creader VI+ code reader

Launch Creader VI+ code reader

Creader VI+ (code reader) is a new automotive fault diagnostic tool that Launch specially designed for DIY user and maintenance personnel of small auto repair shops. This product has applied color LCD, user-friendly function menu design, supporting full functions of OBD&EOBD vehicle and basic diagnostic functions of eight Japanese brands JOBD vehicles, with multi-languages selection and LED diagnostic status indication, which greatly improves the operability of product. It has applied whole new product platform, which makes Creader VI+ (code reader) run fast and diagnose more efficient.

Product functions:
JOBD basic diagnostic functions
Read fault code
Clear fault code
Read data streams
OBDII full diagnostic functions
Read dynamic data streams
MIL indication
Readiness status testing
Query freeze frame
Read current fault code
Clear fault code
Oxygen sensor detection testing
On-board monitoring test for specific monitored systems
Read pending fault code
Read control of on-board systems or components
Read vehicle information
Read permanent fault code
Query fault code
Play back test data

Specification:

Product parameters

Screen: 2.8″, 262K true color, 320*240 LCD

Input voltage range: 8-32V

Operating current: typically <100mA@12V

Typical power consumption: <1.2W

Wire connection: standard 16Pin OBD diagnostic connector

Environmental temperature: 0℃ ～ 50℃

Storage temperature and humidity: -20℃-70℃@ RH 60%

External dimension: L*W*H=121*82*26mm

Single unit: <500g
